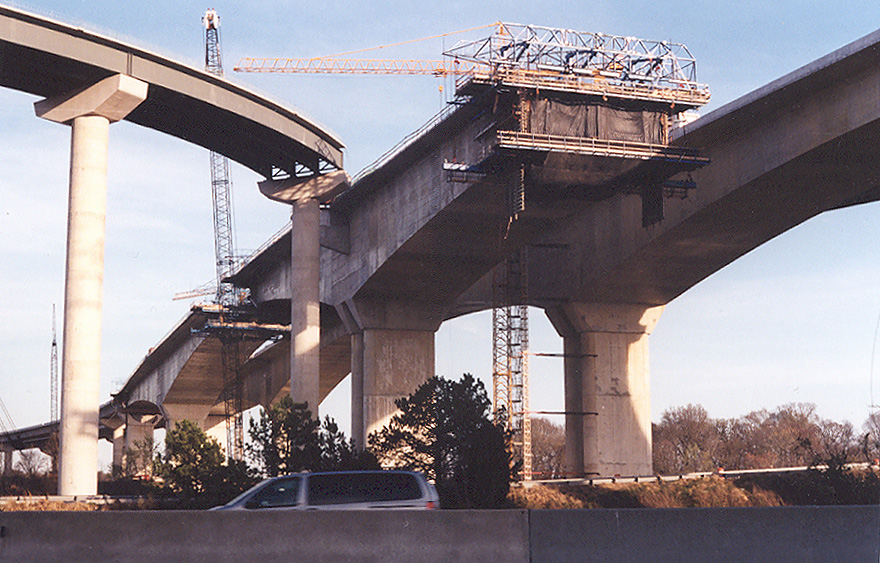

Above, main span of Route 895 James River Bridge. Eastbound span is complete, and only about 10 cast-on-place segments remain to be constructed on the westbound span of the main span. The main spans and side spans are being built by the cast-in-place balanced cantilever method. See my article Route 895 Construction - August 2001 - Photos 6-10 for details about this construction method. The vantage point is from the ramp from VA-150 Chippenham Parkway to I-95 northbound, looking eastward toward construction of main span.

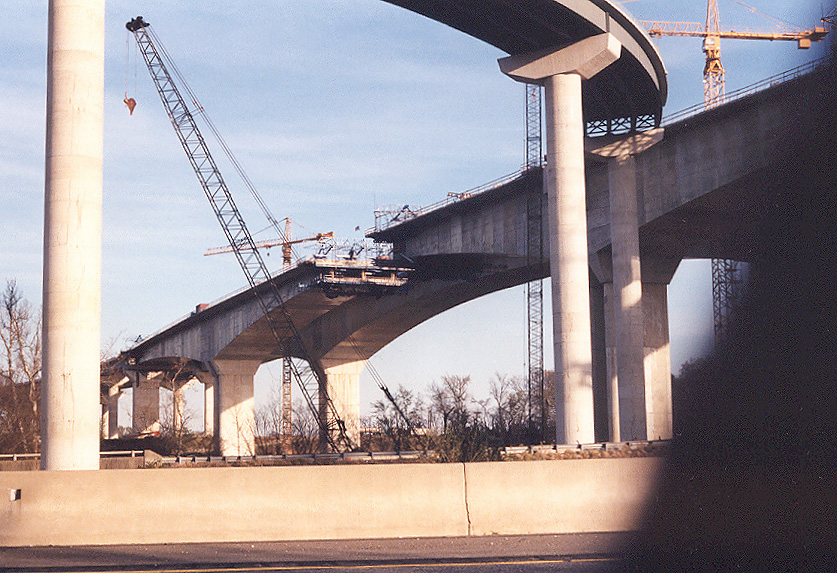

Above, main span of Route 895 James River Bridge. Eastbound span is complete, and only about 10 cast-on-place segments remain to be constructed on the westbound span of the main span. The main spans and side spans are being built by the cast-in-place balanced cantilever method. The vantage point is from the I-95 southbound shoulder, looking eastward toward construction of the main span. The high-level bridge ramp at the top of the photo, is Ramp H, which is the ramp from Route 895 westbound to I-95 northbound. Click for large more dense image (331K); hit "BACK" key to return here.

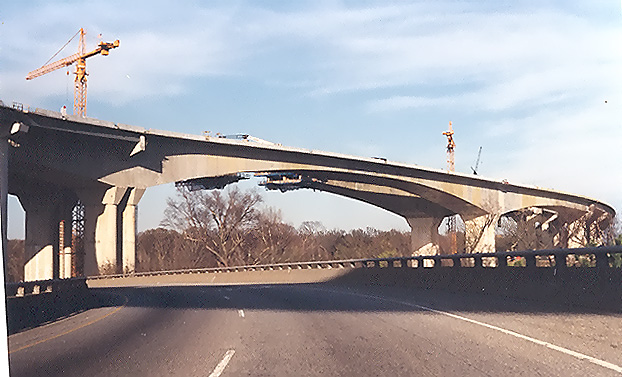

Above, main span of Route 895 James River Bridge. Eastbound span is complete, and only about 10 cast-on-place segments remain to be constructed on the westbound span of the main span. The main spans and side spans are being built by the cast-in-place balanced cantilever method. The vantage point is from the I-95 southbound shoulder, looking eastward toward construction of the main span. Click for large more dense image (267K); hit "BACK" key to return here.

Next: Route 895 Construction - March 2002 - Photos 10-13

Lead page for Route 895 Construction - March 2002
Lead page for Route 895 Construction
Lead page for Route 895 Connector (Pocahontas Parkway)

Back to top

By Scott M. Kozel, Roads to the Future
